300 Series Electromechanical Universal Test Machines
300 Series dual column electromechanical universal test machines are the best choice for performing any mechanical testing applications that require higher forces, higher speeds or increased test space than the 100 or 200 Series can offer. Models are available with load capacities between 5 kN and 500 kN (1,125 lbf and 110 kip).
Start by selecting a frame based on force capacity, horizontal test space & maximum speed.
We realize there are a lot of options, so if you need help figuring out which test machine is right for you, contact us! We are happy to help you get the best machine for your test.

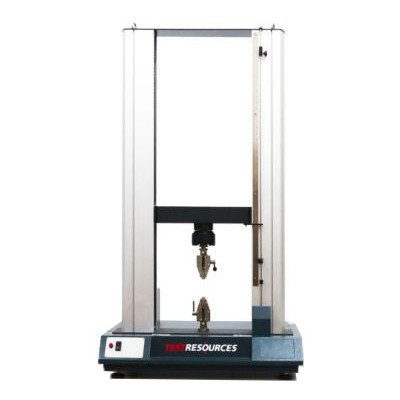

Tabletop Dual Column Universal Test Machine
Force Capacity
50 kN (11250 lbf)
Crosshead Travel
1190 mm (47 in)
Maximum Speed
500 mm/m (20 ipm)
Horizontal Test Space
406 mm (16 in)
Tabletop Dual Column Universal Test Machine
Force Capacity
5 kN (1125 lbf)
Crosshead Travel
980 mm (39 in)
Maximum Speed
1000 mm/m (40 ipm)
Horizontal Test Space
426 mm (16.8 in)
Floorstanding Dual Column Universal Test Machine
Force Capacity
300 kN (67500 lbf)
Crosshead Travel
1130 mm (44 in)
Maximum Speed
300 mm/m (12 ipm)
Horizontal Test Space
550 mm (22 in)
Tabletop Dual Column Universal Test Machine
Force Capacity
10 kN (2250 lbf)
Crosshead Travel
980 mm (39 in)
Maximum Speed
500 mm/m (20 ipm)
Horizontal Test Space
426 mm (16.8 in)
Floorstanding Universal Test Machine
Force Capacity
150 kN (33750 lbf)
Crosshead Travel
1215 mm (48 in)
Maximum Speed
300 mm/m (12 ipm)
Horizontal Test Space
550 mm (22 in)
Tabletop Dual Column Universal Test Machine
Force Capacity
25 kN (5625 lbf)
Crosshead Travel
980 mm (39 in)
Maximum Speed
500 mm/m (20 ipm)
Horizontal Test Space
426 mm (16.8 in)
Compression Test Machine
Force Capacity
300 kN (67500 lbf)
Crosshead Travel
100 mm (4 in)
Maximum Speed
40 mm/min (1.6 ipm)
Horizontal Test Space
300 mm (12 in)
Floorstanding Universal Test Machine
Force Capacity
100 kN (22500 lbf)
Crosshead Travel
1215 mm (48 in)
Maximum Speed
300 mm/m (12 ipm)
Horizontal Test Space
550 mm (22 in)
Floorstanding Universal Test Machine
Force Capacity
500 kN (112500 lbf)
Crosshead Travel
1190 mm (47 in)
Maximum Speed
300 mm/m (12 ipm)
Horizontal Test Space
550 mm (22 in)
Compression Test Machine
Force Capacity
500 kN (112500 lbf)
Crosshead Travel
100 mm (4 in)
Maximum Speed
40 mm/min (1.6 ipm)
Horizontal Test Space
300 mm (12 in)
Wide Width Dual Column Universal Test Machine
Force Capacity
5 kN (1125 lbf)
Maximum Speed
1000 mm/min (40 ipm)
Horizontal Test Space
1250 mm (50 in)
Wide Width Dual Column Universal Test Machine
Force Capacity
50 kN (11250 lbf)
Maximum Speed
300 mm/min (12 ipm)
Horizontal Test Space
1200 mm (48 in)
