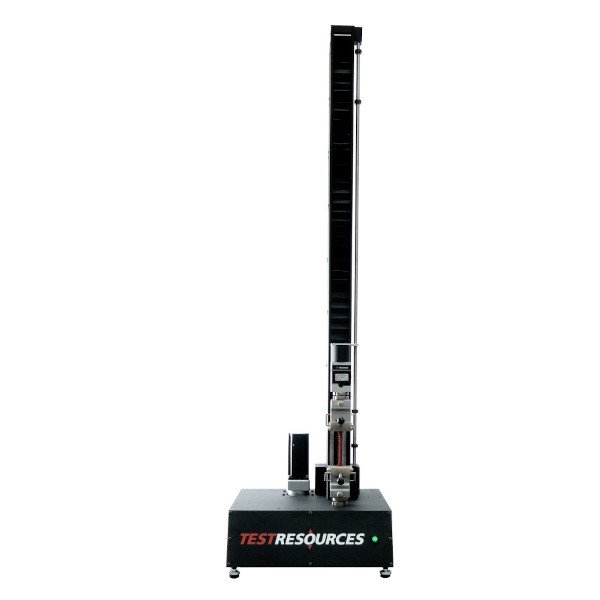

200 Series Electromechanical Universal Test Machines

The 200 Series single column test machines are ideal for tension and compression applications where test force requirements are up to 5 kN (1,125 lbf) with speeds available to 2,500 mm/min.

This series is recommended for high travel or high extension test applications such as rubber tensile testing and tensile testing of medical devices such as catheters.

Top Features

  • Capable of tension, compression, bend, flexure, peel, shear, stress relaxation, and creep tests.
  • Choose controller software, load frame type, actuator stroke/force/speed
  • Speeds up to 2500 mm/min (100 in/min)
  • Up to 1400 mm (55 in) travel
  • Load accuracy 0.5% of indicated load
  • Up to 5,000 Hz data acquisition rate
  • Automatic transducer recognition
  • Digital position encoder with sub-micron resolution
  • Constant speed, constant load rate, position and load control
  • The small tabletop footprint is ideal for situations where table space is limited
  • Meets or exceeds national and international accuracy standards for materials testing system

Start by selecting a frame based on force capacity and crosshead travel space.

Not finding exactly what you are looking for? Contact us! We can help you get the best machine for your test.

5 results - showing 1 - 5
A high elongation tabletop universal test machine.
Force Capacity
2200 N (500 lbf)
Crosshead Travel
1040 mm (41 in)
Maximum Speed
750 mm/m (30 ipm)
Horizontal Test Space
89 mm (3.5 in)
High Elongation Tabletop Universal Test Machine
Force Capacity
5 kN (1125 lbf)
Crosshead Travel
1040 mm (41 in)
Maximum Speed
2500 mm/m (100 ipm)
Horizontal Test Space
89 mm (3.5 in)
High Elongation Tabletop Universal Test Machine
Force Capacity
1100 N (250 lbf)
Crosshead Travel
1040 mm (41 in)
Maximum Speed
1500 mm/m (60 ipm)
Horizontal Test Space
89 mm (3.5 in)
High Elongation Tabletop Universal Test Machine
Force Capacity
2200-1400 N (500 lbf)
Crosshead Travel
1400 mm (55 in)
Maximum Speed
750 mm/m (30 ipm)
Horizontal Test Space
89 mm (3.5 in)
High Elongation Tabletop Universal Test Machine
Force Capacity
1100 N (250 lbf)
Crosshead Travel
1400 mm (55 in)
Maximum Speed
1500 mm/m (60 ipm)
Horizontal Test Space
89 mm (3.5 in)
5 results - showing 1 - 5
