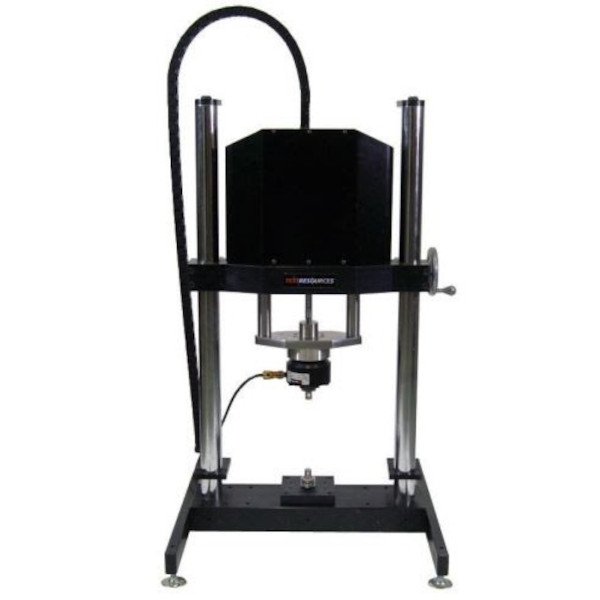

800 Series Dynamic & Fatigue Test Machines
The 800 Series all-electric dynamic and fatigue test systems are optimized for both dynamic and static testing and is the ideal solution for applications up to 50 kN (11250 lbf). This system delivers high performance without the need for expensive hydraulic or pneumatic air supplies, making them more affordable. The 800 Series is extremely lab friendly thanks to its compact size and practically maintenance-free operation.
Top Features
- For static and fatigue tests up to 50 kN (11250 lbf) axial load capacity
- Speeds up to 250 mm/sec (10 ips)
- High dynamic performance, capable of performing at up to 15 Hz
- Long travel and stroke options which provide easy specimen set-up
- Oil-Free all-electric dynamic motor technology for clean operation - Environmentally friendly
- Electrically powered, no need for hydraulic supplies
- Tabletop and floorstanding versions
Start by choosing a frame by force capacity:
Not finding exactly what you are looking for? Contact us! We can help you get the best machine for your test.
6 results - showing 1 - 6
Tabletop Fatigue Test Machine
Force Capacity
15 kN (3370 lbf)
Maximum Dynamic Frequency
15 Hz
Maximum Speed
100 mm/sec (4 ips)
Horizontal Test Space
405 mm (16 in)
Actuator Stroke
140 mm (5.6 in)
Tabletop Fatigue Test Machine
Force Capacity
2.5 kN (575 lbf)
Maximum Dynamic Frequency
15 Hz
Maximum Speed
200 mm/sec (8 ips)
Horizontal Test Space
405 mm (16 in)
Actuator Stroke
140 mm (5.6 in)
Tabletop Fatigue Test Machine
Force Capacity
30 kN (6750 lbf)
Max Force Capacity
25 kN (5500 lbf)
Maximum Dynamic Frequency
15 Hz
Horizontal Test Space
405 mm (16 in)
Actuator Stroke
240 mm (9.4 in)
Tabletop Fatigue Test Machine
Force Capacity
5 kN (1125 lbf)
Maximum Dynamic Frequency
15 Hz
Maximum Speed
125 mm/sec (5 ips)
Horizontal Test Space
405 mm (16 in)
Actuator Stroke
140 mm (5.6 in)
Floorstanding Dual Column Universal Test Machine
Force Capacity
50 kN (11250 lbf)
Max Force Capacity
1.5 kN (335 lbf)
Maximum Dynamic Frequency
5 Hz
Maximum Speed
250 mm/sec (10 ips)
Horizontal Test Space
506 mm (20 in)
Actuator Stroke
240 mm (9.4 in)
Tabletop Fatigue Test Machine
Force Capacity
440 N (100 lbf)
Maximum Dynamic Frequency
15 Hz
Maximum Speed
210 mm/sec (8 ips)
Horizontal Test Space
405 mm (16 in)
Actuator Stroke
68 mm (2.7 in)
6 results - showing 1 - 6
