Get the Widest Variety of Axial Torsion Test Machines
Choose from 15 different models with 100's of configurations
Choose from 15 different models with 100’s of configurations which allows you to optimize your testing capabilities and pick exactly what you need. While other companies only have 4 or 5 frames to choose from, our extensive product line of axial torsion test machines gives you the options you have been craving for. Why do we give you so many options? More choices mean fewer compromises!
Each solution can be custom designed to meet your exact application, both now and in the future. Today you might be testing luers and next you might be testing syringes. We've got you covered. Our axial torsion testers give you the freedom you need to keep testing for years to come.
| Configuration Number | Type | Axial Load Capacity | Torsion Capacity | Frequency |
|---|---|---|---|---|
| Low Capacity Axial Torsion Test Machines | ||||
| 131AT | Static | 2.2 kN (500 lbf) | 10 Nm (88 in-lbf) | - |
| 240AT | Static | 4.4 kN (1000 lbf) | 20 Nm (177 in-lbf) | - |
| 310AT | Static | 5 kN (1125 lbf) | 20 Nm (177 in-lbf) | - |
| 530E2 | Dynamic | 1.5 kN (350 lbf) | 10 Nm (88 in-lbf) | 15 Hz |
| 830E3 | Dynamic | 5 kN (1125 lbf) | 20 Nm (177 in-lbf) | 15 Hz |
| Mid Capacity Axial Torsion Test Machines | ||||
| 130AT | Static | 9 kN (2000 lbf) | 100 Nm (880 in-lbf) | - |
| 311AT | Static | 10 kN (2250 lbf) | 20 Nm (177 in-lbf) | - |
| 312AT | Static | 25 kN (5500 lbf) | 100 Nm (880 in-lbf) | - |
| 313AT | Static | 50 kN (11250 lbf) | 100 Nm (880 in-lbf) | - |
| 830E4 | Dynamic | 15 kN (3375 lbf) | 50 Nm (440 in-lbf) | 15 Hz |
| 830E5 | Dynamic | 30 kN (6750 lbf) | 100 Nm (880 in-lbf) | 15 Hz |
| High Capacity Axial Torsion Test Machines | ||||
| 314AT | Static | 100 kN (22500 lbf) | 300 Nm (2650 in-lbf) | - |
| 315AT | Static | 150 kN (33750 lbf) | 300 Nm (2650 in-lbf) | - |
| 316AT | Static | 300 kN (67500 lbf) | 300 Nm (2650 in-lbf) | - |
| 830E6 | Dynamic | 50 kN (11250 lbf) | 180 Nm (1600 in-lbf) | 5 Hz |
 |
|
|
Ready to configure your axial torsion test machine? Contact us by completing the form to help you select the right machine. |
Ready to configure your axial torsion test machine?
Contact us to help you select the right machine.
Contact Us Now!
Common Axial Torsion Applications
- Biomedical
- Luer fittings - leakage and separation forces (ISO 80369, ISO 594)
- Metallic Medical Bone Screws (ASTM F543)
- Syringes (ISO 7886-1, ISO 8537-C, ISO 11040-4, ISO 11608-5)
- Child-Proof Pharmaceutical Bottles (ASTM D7860)
- Adhesive properties of biomaterials
- Orthopedic research of bones, tissues, joints including spine, hip, knee,
shoulder, wrist, finger, ankle, foot & osteosynthesis. - Medical device and implant certification for static and fatigue life
endurance including ISO 7206, ASTM F2068, F1717, F2077, F2267, F1798, and
ISO 12189.
- Engineering Teaching
- Constitutive modeling
- Thin walled tubing
- Engineering Mechanics
- Biomedical
- Characterization of materials including polymers, metals, ceramics, cement
and adhesives, shape memory alloys, coatings, ceramics and composites.Wire - Tools
- Fasteners
- Shafts
- Consumer Products
- Electronics
- Research institutions
- Simulating real life stresses (multiaxial)
- Product durability under biaxial loading
- Combining different test modes to speed development
- And so many more! We have a solution for every application.
Take advantage of our free application support. Our application experts will help you tweak an existing design, weigh the trade-offs between multiple solutions, or scope a custom system. 75% of the time we can improve your selection with just a few questions. Contact us for help selecting the right system for your application
How to Select an Axial Torsion Test Machine in 4 Easy Steps
- Step 1 - Select your frame
- Step 2 - Select your controller software
- Step 3 - Select your accessories
- Step 4 - Contact us
When you're ready to complete your system, contact us, and an application expert will help you optimize your system to your test requirements and budget.
Step 1: Select Your Frame
The biggests factors in selecting the correct frame is by choosing static or dynamic, your force capacity requirements and your torque capacity requirements. Other factors to consider are test space, elongation of test specimen, speed, how much versatility you need, etc.
Need help choosing? Contact us and an application expert can help you weigh your options.
131AT Axial Torsion Test Machine
Type: All-Electric Dynamic or Electromechanical
Axial Load Capacity: 2.2 kN (500 lbf)
Torque Capacity: 10 Nm (88 in-lb)
Ideal solution for applications where tension, compression and torsion tests are required. The 131AT frame can be placed vertically or horizontally on a table. Most affordable solution. The modular design allows for cost-effective customizability for a wide range of applications. The 131AT is ideal in cramped lab spaces where space is a premium.
240AT Axial Torsion Test Machine
Type: Electromechanical
Axial Load Capacity: 4.4 kN (1000 lbf)
Torque Capacity: 20 Nm (177 in-lb)
The design features a mechanically stiff universal test machine with torsion motor either mounted on the moving crosshead or baseplate mounted. Ideal for high elongation materials such as rubber, elastomer, plastic, etc. as well as tensile, compression, torsion and combined biaxial tests. Great for biomedical test applications. The 240AT load frame is compact and lightweight and applies to situations where lab table space is limited. The 240AT family has multiple frames featuring high travels, high speeds, and is a premium UTM package. Best value.

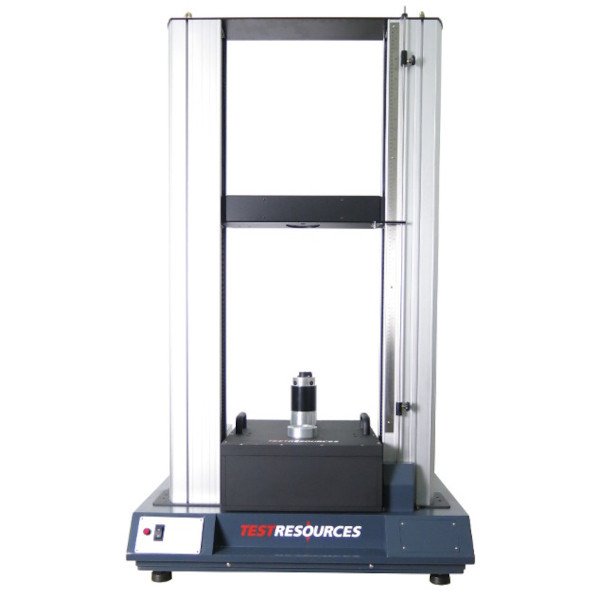

310AT Universal Test Machine with Torsion Add-on
Type: Electromechanical
Axial Load Capacity: 5 kN (1125 lbf)
Torque Capacity: 20 Nm (177 in-lb)
The Torsion Channel Add-on package expands a universal test machine into a system that performs both torsion and combined axial-torsion (biaxial) tests. 310AT add-ons deliver great versatility at an affordable price for anyone that seeks the benefits of a universal test machine combined with torsion and biaxial test applications. In addition to torsion and combined axial torsion applications, these universal test machines perform the full gamut of mechanical tests including tensile, compressive, bend, bond, flexural, fracture, peel, shear, tear, stress relaxation, and short term creep tests. Best value in its force class.
530E2 Axial Torsion Test Machine
Type: All-Electric Dynamic
Axial Load Capacity: 1.5 kN (350 lbf)
Torque Capacity: 10 Nm (88 in-lb)
Frequency: 15 Hz
The 530E2 Axial Torsion Test Machine serves static, dynamic and fatigue testing applications where a material, product or device experiences combined axial and torsional loading conditions. Ideal for applications that require a dynamic speed range and situations where table space is limited. The 530E2 frame can be placed vertically or horizontally on a table. Commonly used for low force biological tissue applications.
830E3 Axial Torsion Test Machine
Type: All-Electric Dynamic
Axial Load Capacity: 5 kN (1125 lbf)
Torque Capacity: 20 Nm (177 in-lb)
Frequency: 15 Hz
The 830E3 systems cover a wide range of biaxial load capacities and applications. Ideal for low force load controlled fatigue testing applications. The larger frame is ideal for chambers and larger samples. 830 systems are modular, so they can be configured in a variety of ways.
130AT Axial Torsion Test Machine
Type: Electromechanical
Axial Load Capacity: 9 kN (2000 lbf)
Torque Capacity: 100 Nm (880 in-lb)
The 130AT column spacing enables use of environmental chambers and large test sample test requirements. Maximum force capacity is 9 kN (2000 lbf). The 130AT is the ideal solution for test labs where both tension, compression and torsion tests are required.
311AT Universal Test Machine with Torsion Add-on
Type: Electromechanical
Axial Load Capacity: 10 kN (2250 lbf)
Torque Capacity: 20 Nm (177 in-lb)
The Torsion Channel Add-on package expands a universal test machine into a system that performs both torsion and combined axial-torsion (biaxial) tests. 311AT add-ons deliver great versatility at an affordable price for anyone that seeks the benefits of a universal test machine combined with torsion and biaxial test applications. In addition to torsion and combined axial torsion applications, these universal test machines perform the full gamut of mechanical tests including tensile, compressive, bend, bond, flexural, fracture, peel, shear, tear, stress relaxation, and short term creep tests. Best value in its force class.
312AT Universal Test Machine with Torsion Add-on
Type: Electromechanical
Axial Load Capacity: 25 kN (5500 lbf)
Torque Capacity: 100 Nm (880 in-lb)
The Torsion Channel Add-on package expands a universal test machine into a system that performs both torsion and combined axial-torsion (biaxial) tests. 312AT add-ons deliver great versatility at an affordable price for anyone that seeks the benefits of a universal test machine combined with torsion and biaxial test applications. In addition to torsion and combined axial torsion applications, these universal test machines perform the full gamut of mechanical tests including tensile, compressive, bend, bond, flexural, fracture, peel, shear, tear, stress relaxation, and short term creep tests. Best value in its force class.
313AT Universal Test Machine with Torsion Add-on
Type: Electromechanical
Axial Load Capacity: 50 kN (11250 lbf)
Torque Capacity: 100 Nm (880 in-lb)
The Torsion Channel Add-on package expands a universal test machine into a system that performs both torsion and combined axial-torsion (biaxial) tests. 313AT add-ons deliver great versatility at an affordable price for anyone that seeks the benefits of a universal test machine combined with torsion and biaxial test applications. In addition to torsion and combined axial torsion applications, these universal test machines perform the full gamut of mechanical tests including tensile, compressive, bend, bond, flexural, fracture, peel, shear, tear, stress relaxation, and short term creep tests.

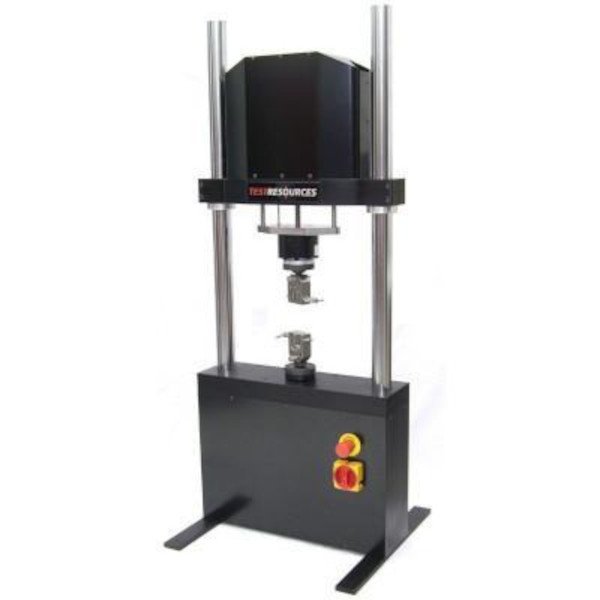

830E4 Axial Torsion Test Machine
Type: All-Electric Dynamic
Axial Load Capacity: 15 kN (3375 lbf)
Torque Capacity: 50 Nm (440 in-lb)
Frequency: 15 kN
The 830E4 systems cover a wide range of biaxial load capacities and applications. Ideal for low force load controlled fatigue testing applications. 830 systems are modular, so they can be configured in a variety of ways.
830E5 Axial Torsion Test Machine
Type: All-Electric Dynamic
Axial Load Capacity: 30 kN (3375 lbf)
Torque Capacity: 100 Nm (880 in-lb)
Frequency: 15 Hz
The 830E5 systems cover a wide range of biaxial load capacities and applications. Ideal for low force load controlled fatigue testing applications. 830 systems are modular, so they can be configured in a variety of ways. Compared to servohydraulic axial torsion tet machines, the 830E5 offers many advantages.
314AT Universal Test Machine with Torsion Add-on
Type: Electromechanical
Axial Load Capacity: 100 kN (22500 lbf)
Torque Capacity: 300 Nm (2650 in-lb)
The Torsion Channel Add-on package expands a universal test machine into a system that performs both torsion and combined axial-torsion (biaxial) tests. 314AT add-ons deliver great versatility at an affordable price for anyone that seeks the benefits of a universal test machine combined with torsion and biaxial test applications. In addition to torsion and combined axial torsion applications, these universal test machines perform the full gamut of mechanical tests including tensile, compressive, bend, bond, flexural, fracture, peel, shear, tear, stress relaxation, and short term creep tests. Best value in its force class.
315AT Universal Test Machine with Torsion Add-on
Type: Electromechanical
Axial Load Capacity: 150 kN (33750 lbf)
Torque Capacity: 300 Nm (2650 in-lb)
The Torsion Channel Add-on package expands a universal test machine into a system that performs both torsion and combined axial-torsion (biaxial) tests. 315AT add-ons deliver great versatility at an affordable price for anyone that seeks the benefits of a universal test machine combined with torsion and biaxial test applications. In addition to torsion and combined axial torsion applications, these universal test machines perform the full gamut of mechanical tests including tensile, compressive, bend, bond, flexural, fracture, peel, shear, tear, stress relaxation, and short term creep tests. Best value in its force class.
316AT Universal Test Machine with Torsion Add-on
Type: Electromechanical
Axial Load Capacity: 300 kN (67500)
Torque Capacity: 300 Nm ( 2650 in-lb)
The Torsion Channel Add-on package expands a universal test machine into a system that performs both torsion and combined axial-torsion (biaxial) tests. 316AT add-ons deliver great versatility at an affordable price for anyone that seeks the benefits of a universal test machine combined with torsion and biaxial test applications. In addition to torsion and combined axial torsion applications, these universal test machines perform the full gamut of mechanical tests including tensile, compressive, bend, bond, flexural, fracture, peel, shear, tear, stress relaxation, and short term creep tests. Best value in its force class.

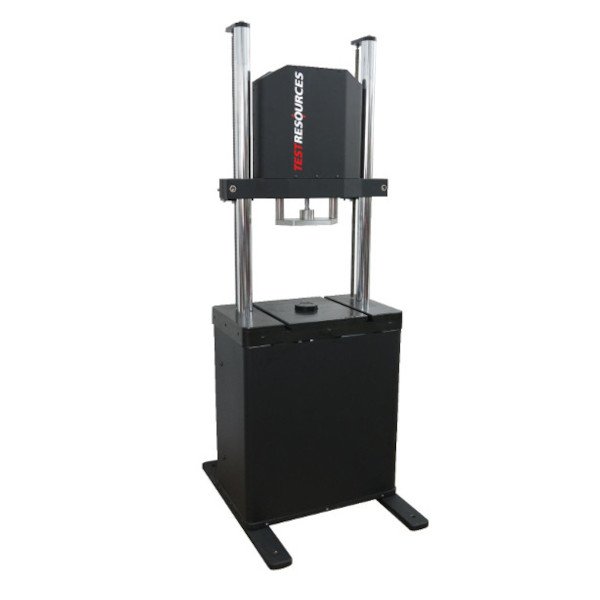

830E6 Axial Torsion Test Machines
Type: All-Electric Dynamic
Axial Load Capacity: 50 kN (11250 lbf)
Torque Capacity: 180 Nm (1600 in-lb)
Frequency: 5 Hz
The 830E6 systems cover a wide range of high force biaxial load capacities and applications. Ideal for low force load controlled fatigue testing applications. 830 systems are modular, so they can be configured in a variety of ways. Compared to servohydraulic axial torsion tet machines, the 830E6 offers many advantages.
Custom Axial Torsion Solutions
Don't see exactly what you need? We will take that challenge! Our application expert will help you find exactly what you need for your application. Fortunately, with our large number of standard products and a massive number of modular sub-assemblies, we can tweak an existing design quickly and economically.
Contact us to get started
Step 2: Select Your Controller Software
Choose From 190+ Pre-configured Software Solutions
Pre-configured solutions meet customer specifications and budget for a wide range of test applications. Industry standard-specific software modules, enhanced features and custom calculations are just a few of the options to choose from with Newton.
Shop Controller Software
Step 3: Select Your Accessories
Choose From 1,000's of Accessories
Choose from a wide variety of test accessories for a wide variety of purposes. These accessories include grips, environmental chambers, transducers, and sample preparation items. With these accessories, you can have confidence that your specimens will be tested consistently, correctly, and will yield ideal results.
Shop Accessories
Step 4: Contact Us
Ready to configure your test machine?
Contact us to confirm your configuration, request prices, and place your order.
