Screw Action Grips

Mechanical screw side action grips provide an efficient method for holding test specimens in a wide range of tensile testing applications. Mechanical screw action grips, also known as mechanical vise grips, are the most affordable grip in their force class because they depend on the operator to open and close them. They don’t require the additional infrastructure associated with powered grips. The dual-acting design ensures that jaws can be adjusted side to side to accommodate different specimen thicknesses, and that the line of tensile force remains concentric with the grip body.

All grips and fixtures can be adapted to fit any brand of test machine through the use of an optional adapter.

 Advanced search
Filters
28 results - showing 1 - 12
1 2 3
G90 Screw Action Grip

G90 Screw Action Grip

Mechanical side action grips feature a dual-acting screw design.
Max Force Capacity
50 kN (11250 lbf)
Max Opening
30
Sample Diameter
6 to 30 mm
G240k-S50 Screw Action Grip

G240k-S50 Screw Action Grip

Mechanical screw side action grips provide an affordable and efficient method for ...
Max Force Capacity
1 kN (225 lbf)
Max Opening
50
Sample Diameter
2 to 52 mm
G240k-S10 Screw Action Grip

G240k-S10 Screw Action Grip

Mechanical screw side action grips provide an affordable and efficient method for ...
Max Force Capacity
2.5 kN (560 lbf)
Max Opening
10
Sample Diameter
2 to 10 mm
G227 Screw Action Grip

G227 Screw Action Grip

Mechanical side action grips feature a dual-acting screw design.
Max Force Capacity
400 N (80 lbf)
Max Opening
8
Sample Type
flat
G154-10 Screw Action Grip

G154-10 Screw Action Grip

Mechanical side action grips feature a dual-acting screw design.
Max Force Capacity
10 kN (2250 lbf)
Max Opening
34
Sample Type
flat

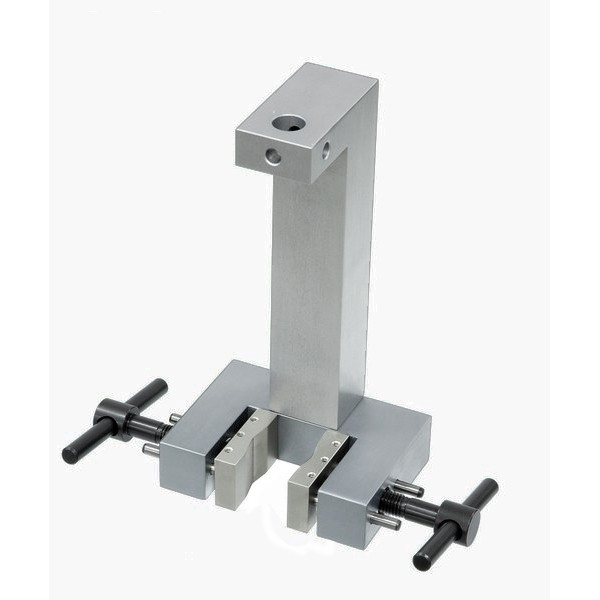

G56g-H200 Screw Action Grip

G56g-H200 Screw Action Grip

Mechanical side action grips feature a dual-acting screw design.
Max Force Capacity
5 kN (1125 lbf)
Max Opening
42
Sample Diameter
2 to 42 mm

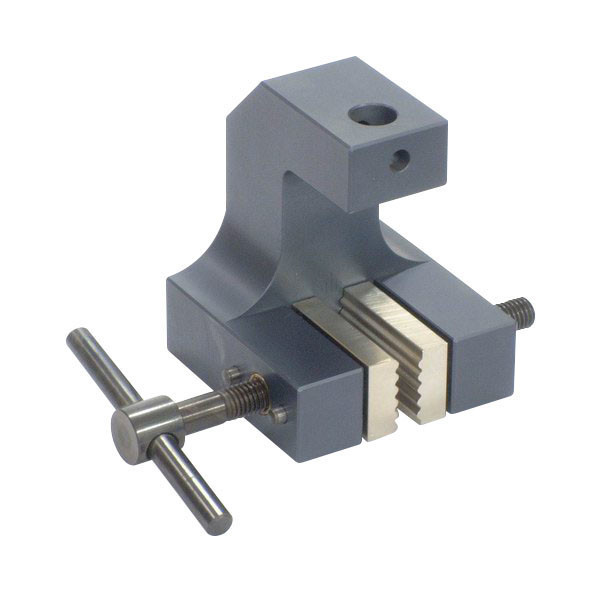

G56g Screw Action Grip

G56g Screw Action Grip

Mechanical side action grips feature a dual-acting screw design.
Max Force Capacity
5 kN (1125 lbf)
Max Opening
15
Sample Diameter
2 to 15 mm
G154-20 Screw Action Grip

G154-20 Screw Action Grip

Mechanical side action grips feature a dual-acting screw design.
Max Force Capacity
20 kN (4500 lbf)
Max Opening
34
Sample Diameter
6 to 32 mm
G668-80-BP Screw Action Grip

G668-80-BP Screw Action Grip

Mechanical side action grips feature a dual-acting screw design.
Max Force Capacity
100 kN (22500 lbf)
Max Opening
40
Sample Type
flat
G240g-S30 Screw Action Grip

G240g-S30 Screw Action Grip

Mechanical side action grips feature a dual-acting screw design.
Max Force Capacity
5 kN (1125 lbf)
Max Opening
28
Sample Diameter
2 to 28 mm
G140k Screw Action Grip

G140k Screw Action Grip

Mechanical side action grips feature a dual-acting screw design.
Max Force Capacity
100 N (20 lbf)
Max Opening
8
Sample Type
flat
G240k-A4 Stainless Screw Action Grip

G240k-A4 Stainless Screw Action Grip

Mechanical screw side action grips provide an affordable and efficient method for ...
Max Force Capacity
5 kN (1125 lbf)
Max Opening
10
Sample Diameter
2 to 9 mm
28 results - showing 1 - 12
1 2 3
