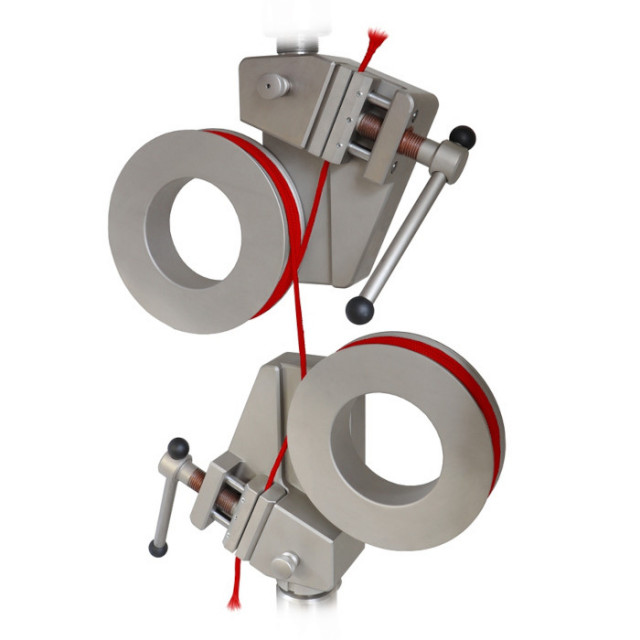

Capstan Grips
This manual capstan grips are used for testing high capacity ropes.
Max Force Capacity
150 kN (33750 lbf)
Sample Diameter
5 to 25 mm
Sample Type
round
Capstan Diameter
270 mm (10.6 in)
Capstan Width
70 mm
Minimum Sample Length
2600 mm
Graduated capstan style mechanical grips for testing of light rope, cord, yarn, p...
Max Force Capacity
5 kN (1125 lbf)
Sample Diameter
0 to 3 mm
Capstan Width
20 mm (0.8 in)
These screw action grips feature a unique combination of a small capstan with adju...
Max Force Capacity
2.5 kN (560 lbf)
Max Opening
5
Sample Diameter
0 to 5 mm
These pneumatic capstan grips are versatile and used to test ropes and flat strips.
Max Force Capacity
50 kN (11250 lbf)
Sample Diameter
0 to 16 mm
These pneumatic grips feature a unique combination of a small capstan, adjustable ...
Max Force Capacity
600 N (130 lbf)
Max Opening
5
Sample Diameter
0 to 5 mm
Clamp Load
1.2 kN (270 lbf) with air supply of 7 BAR (100 PSI)
G222 manual capstan grips are used for flexible flat samples such as sheet and fab...
Max Force Capacity
250 kN (56250 lbf)
Max Opening
11
Capstan Diameter
150 mm (5.9 in)
Capstan Width
160 mm (6.3 in)
Mechanical capstan grip used to test small easy-bendable ropes.
Max Force Capacity
10 kN (2250 lbf)
Sample Diameter
0 to 5 mm
Capstan Diameter
26 mm (1 in)
Capstan Width
14 mm
G222 manual capstan grips are used for soft and flexible flat samples such as shee...
Max Force Capacity
100 kN (22500 lbf)
Max Opening
11
Capstan Diameter
60 mm (2.4 in)
Capstan Width
80 mm (3.15 in)
Minimum Sample Length
910 mm (36 in)
This manual capstan grips are used for testing high capacity ropes.
Max Force Capacity
50 kN (11250 lbf)
Sample Diameter
5 to 25 mm
Sample Type
round
Capstan Diameter
270 mm (10.6 in)
Capstan Width
70 mm
Minimum Sample Length
1500 mm
These pneumatic capstan grips are versatile and used to test ropes and flat strips.
Max Force Capacity
20 kN (4500 lbf)
Sample Diameter
0 to 10 mm
Capstan grips are used to test filaments, rope, cord, yarn, fine wires, medical tu...
Max Force Capacity
20 kN (4500 lbf)
Sample Diameter
0 to 9 mm
Capstan Diameter
93 mm (3.66 in)
Capstan Width
15 mm
Minimum Sample Length
800 mm
Pneumatic capstan grip with a stainless steel bollard.
Max Force Capacity
2 kN (450 lbf)
Sample Diameter
0 to 2 mm
Sample Type
round
Clamp Load
6 kN (1350 lbf)
Capstan Diameter
Horn Type
Minimum Sample Length
250 mm (10 in)
