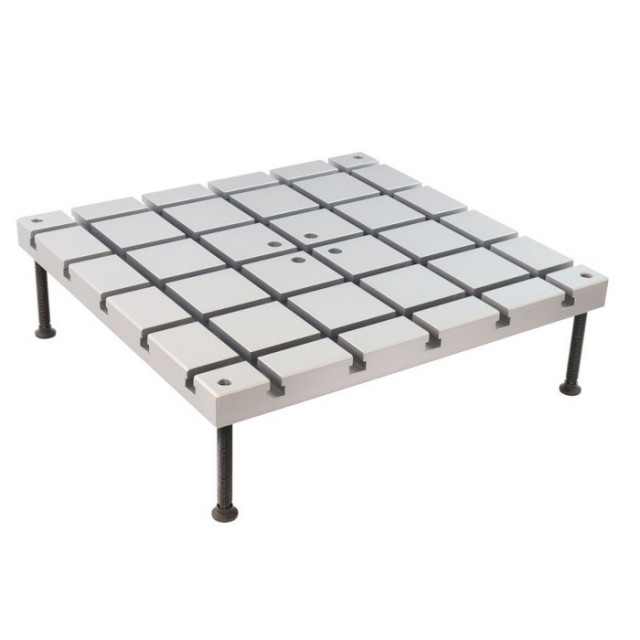

T Slotted Test Plate

T-slot tables and component test plates are used with universal testing machines to mount or clamp components, finished products, and structures for tensile, compression, flexural, peel, and puncture testing applications. They provide an extended work area and a convenient way to secure your test samples in your test machine.

T-slot tables are mounted directly to the base of the machine. The slots run front-to-back, side-to-side, and diagonally. Components and structures can be secured in position using the various clamping tools. G36T slot tables allow you to secure components that can't be held with tensile grips to a universal testing machine. T-slot nuts are slid into the inverted T-slot of the table. Bolts, studs, or threaded rods are threaded into the nuts.

T-slot tables can be used to repeat-position specimens in the same location for batch testing of components. Guides, slides, and stops can be bolted into position to allow placement of the specimens for every test.

• Aluminum, anodized or Steel, nickel-plated
• T-slotted fixed compression platen
• Enables uniform stress distribution tests
• Available in a variety of configurations, materials, and range of sizes
